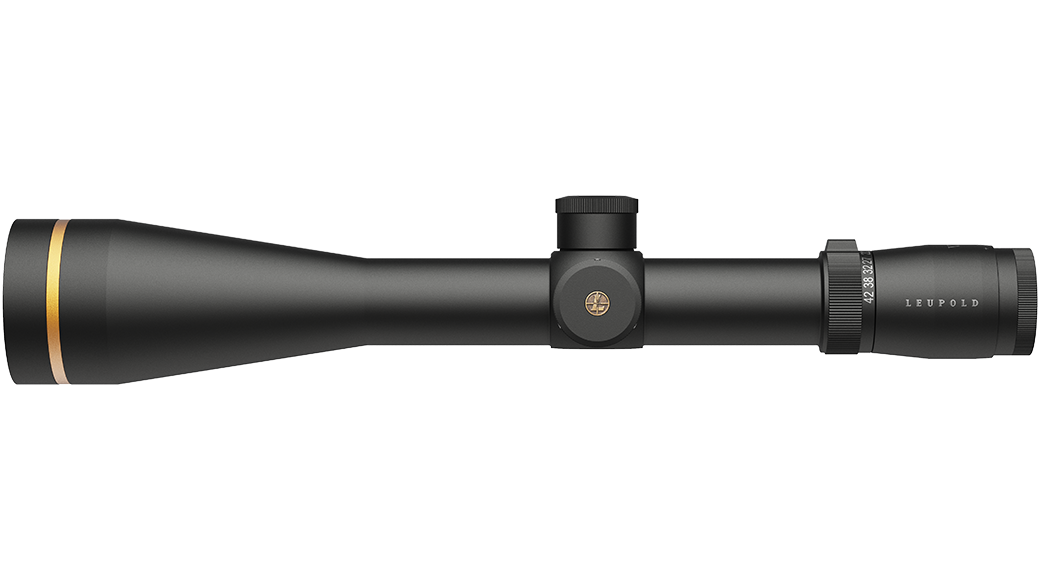

VX-6 7-42X56 CDS Side Focus Target TMOA Plus
Part #
118504
Developed and tested alongside F-Class shooters, the 7-42x56mm delivers incredible precision at extreme distances. With the widest field of view among competitive scopes and the TMOA Plus reticle, featuring an open center, this scope helps shooters easily locate and engage targets when shots stretch out to incredible distances.
$2,199.99
Developed and tested alongside F-Class shooters, the VX®-6 7-42x56mm delivers incredible precision at extreme distances. With the widest field of view among competitive scopes and the TMOA® Plus reticle, featuring an open center, this scope helps shooters easily locate and engage targets when shots stretch out to incredible distances.
Built around Leupold's Professional-Grade Optical System, the VX-6 delivers unmatched light transmission designed to outperform in the most challenging lighting conditions. Its industry-leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional shooter in the field.
Its unique combination of features, durability, and professional-grade optical performance guarantees that it can handle any challenge you throw at it. The VX-6 is 100% waterproof and fogproof, and like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.
Features
A versatile 6:1 zoom ratio gives you 6 times more magnification at high power than at low power (model magnification ranges are available in powers of 6x: 1-6, 2-12, 3-18, 4-24, etc.), so you can dial your power way down for close encounters or all of the way up for long-range shots. The larger the zoom ratio, the more versatile one scope can be.
Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A versatile 6:1 zoom ratio gives you 6 times more magnification at high power than at low power (model magnification ranges are available in powers of 6x: 1-6, 2-12, 3-18, 4-24, etc.), so you can dial your power way down for close encounters or all of the way up for long-range shots. The larger the zoom ratio, the more versatile one scope can be.
Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
| BDC Dial Included | No |
|---|---|
| Custom Dial Compatible | Yes |
| Daylight Bright Illumination | No |
| Elevation Adjustment Type | VX-6 Target |
| Electronic Reticle Level | No |
| Illuminated | No |
| Locking Dial | No |
| Magnification Type | Variable |
| Motion Sensor Technology (MST) | No |
| Nightvision Compatible Illumination | No |
| Revolution Indicator | Yes |
| Reticle | TMOA Plus |
| Rezero Type | Set Screw |
| Reticle Type | Second Focal Plane |
| Adjustable Objective | No |
| Windage Adjustment Type | VX-6 Target |
| Weight (oz) | 26.3 |
| Elevation Adjustment Value per Click | 1/8MOA |
| Elevation Adjustment Range (MOA) | 50 |
| Elevation Adjustment Range (MIL) | 15 |
| Elevation Adjustment Range (cm @ 100m) | 145 |
| Elevation Adjustment Per Revolution | 10 MOA |
| Elevation Dial Travel Limit | 50MOA |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 50 |
| Windage Adjustment Range (MIL) | 15 |
| Windage Adjustment Range (cm @ 100m) | 145 |
| Windage Adjustment Per Revolution | 10 MOA |
| Magnification Max | 42 |
| Magnification Min | 7 |
| Objective Lens Diameter (mm) | 56 |
| Linear FOV Low Mag (ft@100yds) | 16.3 |
| Linear FOV High Mag (ft@100yds) | 2.7 |
| Angular FOV Low Mag (Degrees) | 3.1 |
| Angular FOV High Mag (Degrees) | .5 |
| Eye Relief Low Mag (in) | 4.2 |
| Eye Relief High Mag (in) | 3.9 |
| Minimum Parallax-Free Distance (yd) | 75 |
Dimensions
| A Total Length (in) - A | 15.5 |
|---|---|
| B Total Mounting Space (in) - B | 6.9 |
| C Front Mounting Space (in) - C | 2.8 |
| D Rear Mounting Space (in) - D | 2.6 |
| E Eyepiece Length (in) - E | 3.3 |
| F Objective Length (in) - F | 5.4 |
| G Objective Diameter (in) - G | 2.5 |
| H Eyepiece Diameter (in) - H | 1.8 |
| K Maintube Diameter (mm/in) - K | 34 mm |
Detailed reticle info
TMOA Plus
Download PDF- Based off a TMR® style reticle, but in a MOA configuration
- Rear (second) focal plane
- Features a hollow aiming point in the center of the reticle for precise shot placement
- Aides in compensating for crosswinds and provides vertical holdovers for bullet drop compensation
- Hash marks are in 1 MOA (minute of angle) increments
- Marks extend to 10 MOA on each side
- 1 MOA is approximately 1 inch at 100 yards
- Not caliber specific
