VX-5HD

VX-5HD 1-5x24 Metric Illum. FireDot 4 Fine

Part #
171385

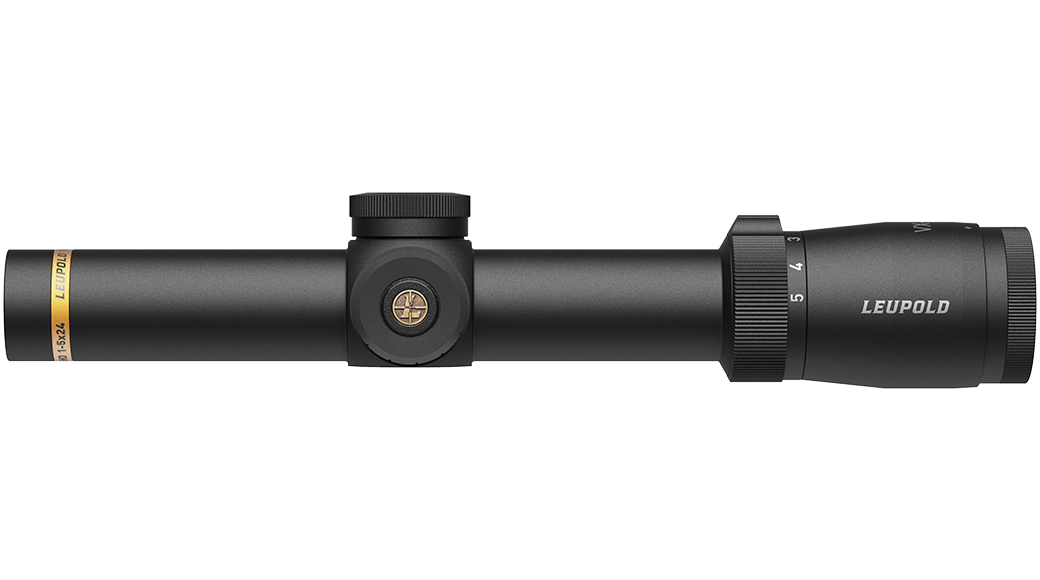

Don't let its small size fool you. This scope is big game ready. At only 13.4 ounces, our VX®-5HD 1-5x24mm riflescope is built for long days in the wilderness. But we didn't stop there; its 1-5x magnification range, rugged construction, and clear glass make it a great choice for competition or tactical shooters, as well.

FireDot® 4 Fine Illum. Reticle info
$999.99
Find it locally

Don't let its small size fool you. This scope is big game ready. At only 13.4 ounces, our VX®-5HD 1-5x24mm riflescope is built for long days in the wilderness. But we didn't stop there; its 1-5x magnification range, rugged construction, and clear glass make it a great choice for competition or tactical shooters, as well. Plus, with our proprietary Firedot® illumination you get a bright, intuitive aiming point that won't get lost in low-light conditions.

The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field.

As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. It's 100% waterproof and fogproof. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
This scope comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MSTâ„¢) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
This scope comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MSTâ„¢) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Battery Type CR2032
BDC Dial Included No
Custom BDC Dial Compatible No
Daylight Bright Illumination Yes
Custom Dial System (CDS) No
Elevation Adjustment Type Pop-Up Rezero
Electronic Reticle Level No
Locking Dial No
Magnification Type Variable
Nightvision Compatible Illumination No
Revolution Indicator No
Reticle Illum. FireDot 4 Fine
Rezero Type Pop-Up
Reticle Type Illuminated
Adjustable Objective No
Side Focus No
Switch Type Push Button
Windage Adjustment Type Pop-Up Rezero
Weight (oz) 13.7
Elevation Adjustment Value per Click 1cm @ 100m
Elevation Adjustment Range (MOA) 170
Elevation Adjustment Range (MIL) 49
Elevation Adjustment Range (cm @ 100m) 495
Elevation Adjustment Per Revolution 80CM @ 100M
Elevation Dial Travel Limit Total Scope Travel
Windage Adjustment Value per Click 1cm @ 100m
Windage Adjustment Range (MOA) 170
Windage Adjustment Range (MIL) 49
Windage Adjustment Range (cm @ 100m) 495
Windage Adjustment Per Revolution 80CM @ 100M
Magnification Max 5
Magnification Min 1
Objective Lens Diameter (mm) 24
Linear FOV Low Mag (ft@100yds) 120.9
Linear FOV High Mag (ft@100yds) 22
Angular FOV Low Mag (Degrees) 22.8
Angular FOV High Mag (Degrees) 7.7
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.8
Fixed Parallax-Free Distance (yd) 150
Battery Life (hr), Low Intensity 1600
Battery Life (hr), Medium Intensity 1000
Battery Life (hr), High Intensity 300
Number of Illum Settings 8
Objective Length (in) 0
Dimensions
A Total Length (in) - A 10.8
B Total Mounting Space (in) - B 6.8
C Front Mounting Space (in) - C 2.9
D Rear Mounting Space (in) - D 2.6
E Eyepiece Length (in) - E 3.3
G Objective Diameter (in) - G 1.2
H Eyepiece Diameter (in) - H 1.8
K Maintube Diameter (mm/in) - K 30 mm

Detailed reticle info

FireDot® 4 Fine Illum.

Download PDF
  • European influenced design
  • Bold outer lines align targets quickly
  • Open upper half of the reticle for observation and spotting
  • Fiber-optic powered red dot
  • Multiple brightness settings for changing conditions
  • FireDot® Technology brings your eye to the center of the reticle for quick target acquisition
  • Features Motion Sensor Technology
  • Rear (second) focal plane
