VX-3i LRP

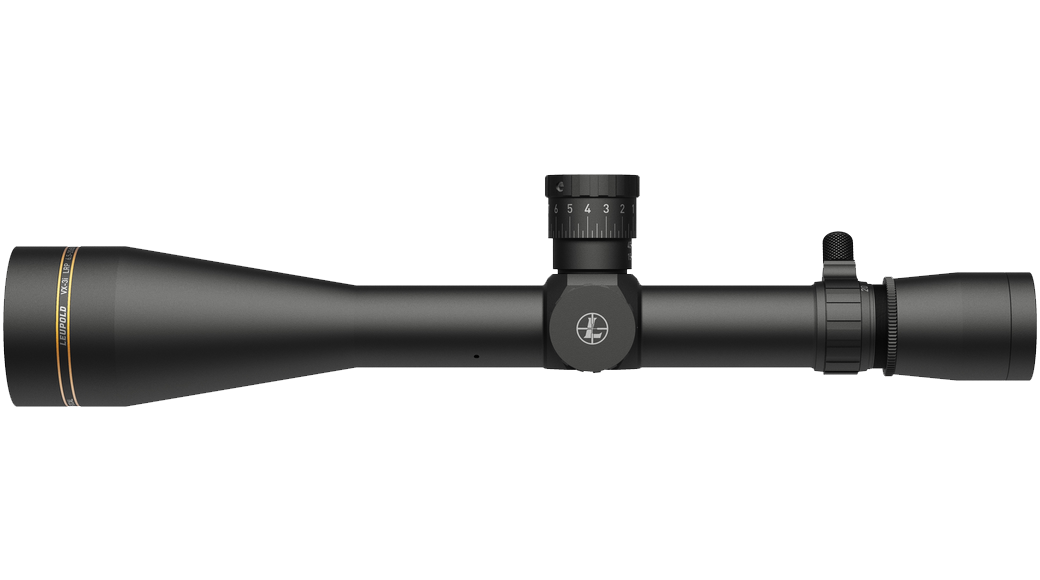

VX-3i LRP 6.5-20x50 Side Focus TMOA

Part #
172340

If you're looking for a little extra magnification for your long-range shooting setup, the VX®-3i LRP (Long Range Precision) 6.5-20x50mm won't disappoint. For hunters, shooters, and precision rifle competitors, the VX-3i LRP eliminates the element of chance from long-range shooting.

matte finish
TMOA® Reticle info
$899.99
This product has been discontinued and is no longer available for purchase
Search products in the same VX-3i LRP

If you're looking for a little extra magnification for your long-range shooting setup, the VX®-3i LRP (Long Range Precision) 6.5-20x50mm won't disappoint. For hunters, shooters, and precision rifle competitors, the VX-3i LRP eliminates the element of chance from long-range shooting.

Built to fit the way you shoot, you can choose first or second focal plane reticles in MOA or MIL. The adjustments match reticle increments and track precisely, shot after shot. The revolution counter is easy to read and its adjustable zero stop prevents over-rotation. It uses Leupold’s Elite Optical System, which provides the light transmission, glare reduction, and resolution that diehard hunters and shooters demand for all-day performance. We also include an optional throw lever and windage dial thread protector, so you can run your VX-3i LRP to fit your needs.

If you want outstanding performance in low-light conditions and an incredibly tough, lightweight design, the VX-3i delivers this and more. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The included windage dial thread protector allows you to run the windage adjustment capped or uncapped without worrying about water, dirt, and debris.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The included windage dial thread protector allows you to run the windage adjustment capped or uncapped without worrying about water, dirt, and debris.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
UPC 00030317013745
Finish Matte
Adjustable Objective No
Elevation Adjustment Type LRP
Locking Dial No
Zero Lock Dial No
Revolution Indicator Yes
Rezero Type Set Screw
Windage Adjustment Type Capped
Custom Dial System (CDS) No
Custom Dial Compatible Yes
BDC Dial Included No
Reticle TMOA
Illuminated No
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 21.7
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 80
Elevation Adjustment Range (MIL) 23
Elevation Adjustment Range (cm @ 100m) 233
Elevation Adjustment Per Revolution 15 MOA
Elevation Dial Travel Limit 60MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 80
Windage Adjustment Range (MIL) 23
Windage Adjustment Range (cm @ 100m) 233
Windage Adjustment Per Revolution 15 MOA
Magnification Max 20
Magnification Min 6.5
Objective Lens Diameter (mm) 50
Linear FOV Low Mag (ft@100yds) 14.7
Linear FOV High Mag (ft@100yds) 6.1
Angular FOV Low Mag (Degrees) 2.8
Angular FOV High Mag (Degrees) 1.2
Eye Relief Low Mag (in) 4.1
Eye Relief High Mag (in) 3.2
Minimum Parallax-Free Distance (yd) 75
Dimensions
A Total Length (in) - A 14.6
B Total Mounting Space (in) - B 6.5
C Front Mounting Space (in) - C 2.6
D Rear Mounting Space (in) - D 2.4
E Eyepiece Length (in) - E 3.2
F Objective Length (in) - F 4.8
G Objective Diameter (in) - G 2.3
H Eyepiece Diameter (in) - H 1.6
K Maintube Diameter (mm/in) - K 30 mm

Detailed reticle info

TMOA®

Download PDF
  • Based off a TMR® reticle, but in a MOA configuration
  • Aides in compensating for crosswinds and provides vertical holdovers for bullet drop compensation
  • Hash marks are in 1 MOA increments
  • Marks extend to 10 MOA on each side
  • 1 MOA is approximately 1 inch at 100 yards
  • Not caliber specific
  • Rear (second) focal plane
