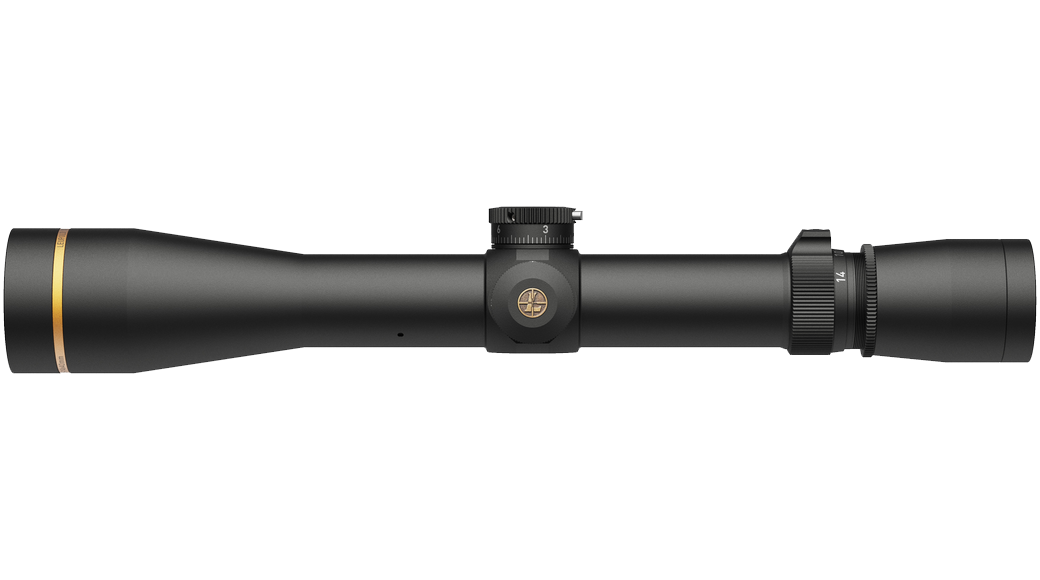

VX-3i 4.5-14x40 Side Focus CDS-ZL Wind-Plex

Part #
177820

Let the VX®-3i 4.5-14x40mm help you reach out farther without adding ounces. With a magnification range great for any situation, you're guaranteed to have the right tool for the job.

Wind-Plex Reticle info
$649.99
Find it locally

Let the VX®-3i 4.5-14x40mm help you reach out farther without adding ounces. With a magnification range great for any situation, you're guaranteed to have the right tool for the job. The CDS-ZL adjustment allows for 14.5 MOA of bullet drop, which equals 500 to 700 yards of travel for most rifles. A push-button ZeroLock® system eliminates accidental dial movement, giving you more peace of mind in the field.

What do hunters want most in a scope? Outstanding performance in low-light conditions and an incredibly tough, lightweight design. The VX-3i delivers this and more. Built around Leupold’s Elite Optical System, it offers the light transmission, glare reduction, and resolution that diehard hunters and shooters demand for all-day performance.

Everything we put into the VX-3i is there to help you tag out. It's 100% waterproof and fogproof, and like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
BDC Dial Included No
Custom BDC Dial Compatible Yes
Daylight Bright Illumination No
Elevation Adjustment Type CDS-ZL
Electronic Reticle Level No
Guard-ion Lens Coating No
Illuminated No
Locking Dial Yes
Motion Sensor Technology (MST) No
Nightvision Compatible Illumination No
Revolution Indicator No
Reticle Wind-Plex
Rezero Type Set Screw
Adjustable Objective No
Windage Adjustment Type Finger Click
Weight (oz) 15.6
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 110
Elevation Adjustment Range (MIL) 32
Elevation Adjustment Range (cm @ 100m) 320
Elevation Adjustment Per Revolution 15 MOA
Elevation Dial Travel Limit 14.5MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 220
Windage Adjustment Range (MIL) 64
Windage Adjustment Range (cm @ 100m) 640
Windage Adjustment Per Revolution 15 MOA
Magnification Max 14
Magnification Min 4.5
Objective Lens Diameter (mm) 40
Linear FOV Low Mag (ft@100yds) 19.9
Linear FOV High Mag (ft@100yds) 7.4
Angular FOV Low Mag (Degrees) 3.8
Angular FOV High Mag (Degrees) 1.4
Eye Relief Low Mag (in) 4.4
Eye Relief High Mag (in) 3.6
Minimum Parallax-Free Distance (yd) 75

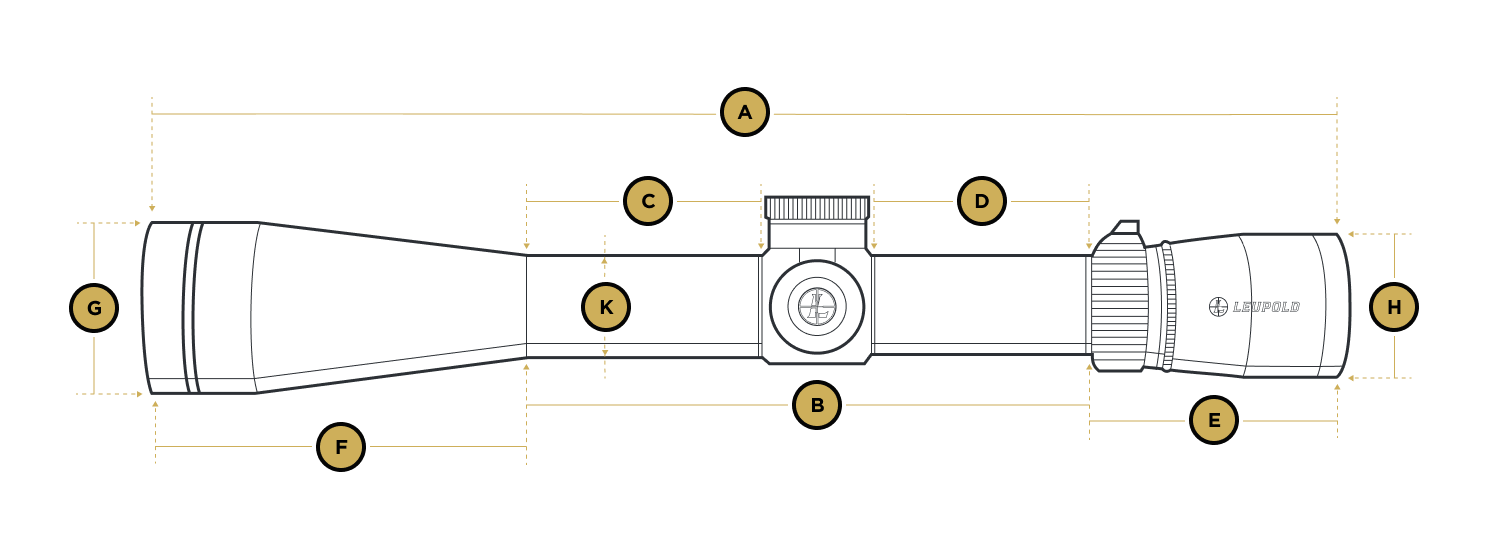

Dimensions
A Total Length (in) - A 12.7
B Total Mounting Space (in) - B 6
C Front Mounting Space (in) - C 2.3
D Rear Mounting Space (in) - D 2.5
E Eyepiece Length (in) - E 3.1
F Objective Length (in) - F 3.6
G Objective Diameter (in) - G 1.8
H Eyepiece Diameter (in) - H 1.6
K Maintube Diameter (mm/in) - K 30 mm

Detailed reticle info

Wind-Plex

Download PDF
  • Expands on the Duplex® reticle
  • Aides in compensating for crosswinds
  • 1 MOA is approximately 1 inch at 100 yards
  • Hash marks are in 1 MOA increments
  • Marks extend to 10 MOA on each side
  • Can be used with any caliber round
  • Best utilized with our CDS® (Custom Dial System®)
  • Rear (second) focal plane
