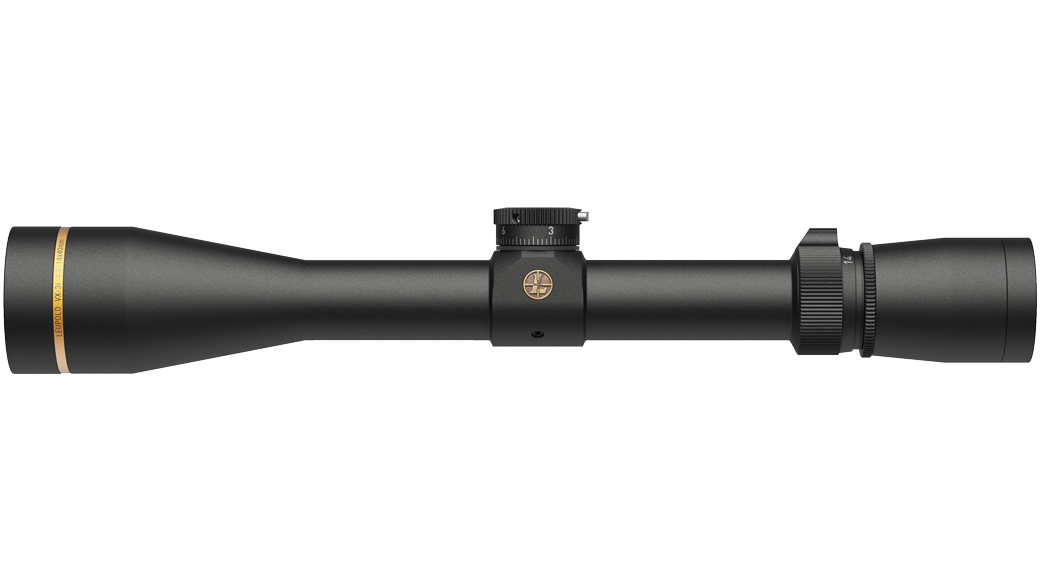

VX-3i 4.5-14x40 CDS-ZL Duplex

Part #
177861

Let the VX®-3i 4.5-14x40mm help you reach out farther without adding ounces. With a magnification range great for any situation, you're guaranteed to have the right tool for the job.

Duplex® Reticle info
$599.99
Find it locally

Let the VX®-3i 4.5-14x40mm help you reach out farther without adding ounces. With a magnification range that's great for any situation, you're guaranteed to have the right tool for the job.

What do hunters want most in a scope? Outstanding performance in low-light conditions and an incredibly tough, lightweight design. The VX-3i delivers this and more. Built around Leupold’s Elite Optical System, it offers the light transmission, glare reduction, and resolution that diehard hunters and shooters demand for all-day performance. Plus, the low-profile, one revolution CDS-ZL dial provides precise adjustments with the security of ZeroLock® so you can be sure your dial only moves when you want it to.

Everything we put into the VX-3i is there to help you tag out. Like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
BDC Dial Included No
Custom Dial Compatible Yes
Daylight Bright Illumination No
Elevation Adjustment Type CDS-ZL
Electronic Reticle Level No
Guard-ion Lens Coating No
Illuminated No
Locking Dial Yes
Motion Sensor Technology (MST) No
Nightvision Compatible Illumination No
Revolution Indicator No
Reticle Duplex
Rezero Type Set Screw
Adjustable Objective No
Side Focus No
Windage Adjustment Type Finger Click
Weight (oz) 13.5
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 65
Elevation Adjustment Range (MIL) 19
Elevation Adjustment Range (cm @ 100m) 189
Elevation Adjustment Per Revolution 15 MOA
Elevation Dial Travel Limit 14.5MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 65
Windage Adjustment Range (MIL) 19
Windage Adjustment Range (cm @ 100m) 189
Windage Adjustment Per Revolution 15 MOA
Magnification Max 14
Magnification Min 4.5
Objective Lens Diameter (mm) 40
Linear FOV Low Mag (ft@100yds) 19.9
Linear FOV High Mag (ft@100yds) 7.4
Angular FOV Low Mag (Degrees) 3.8
Angular FOV High Mag (Degrees) 1.4
Eye Relief Low Mag (in) 4.4
Eye Relief High Mag (in) 3.6
Fixed Parallax-Free Distance (yd) 150
Dimensions
A Total Length (in) - A 12.7
B Total Mounting Space (in) - B 6
C Front Mounting Space (in) - C 2.3
D Rear Mounting Space (in) - D 2.5
E Eyepiece Length (in) - E 3.1
F Objective Length (in) - F 3.6
G Objective Diameter (in) - G 1.8
H Eyepiece Diameter (in) - H 1.6
K Maintube Diameter (mm/in) - K 1 Inch

Detailed reticle info

Duplex®

Download PDF
  • Invented in 1962 by Leupold®
  • Defined by heavy posts
  • Stands out against cover in low light
  • Quick target acquisition with thin lines at the center
  • Most popular reticle in the world
  • Rear (second) focal plane
