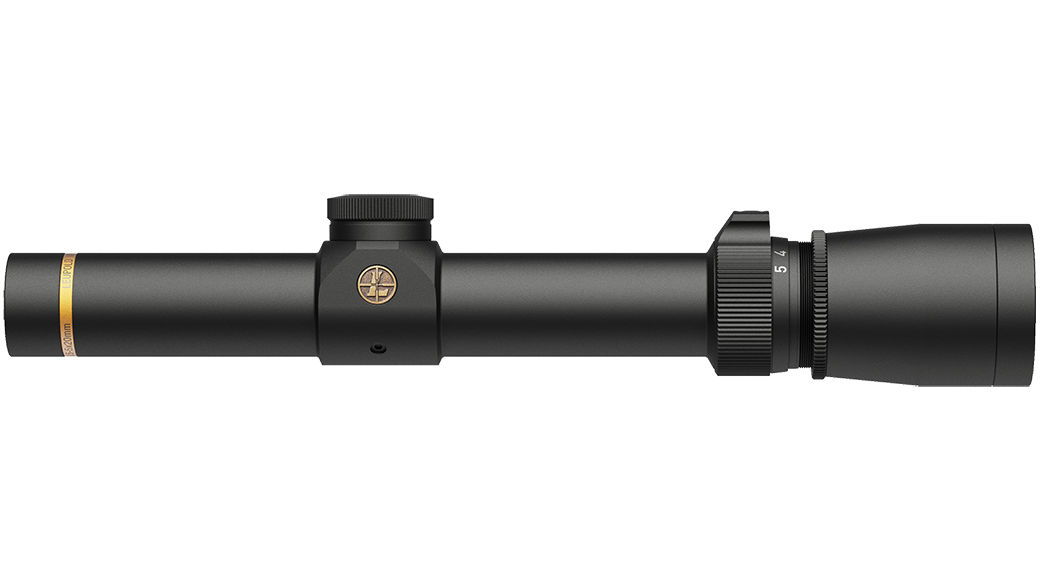

VX-3i 1.5-5x20 Duplex
Part #
170675
The VX®-3i 1.5-5x20mm is one of the most popular dangerous game/safari scopes in the world. From tight brush to open savannahs, the 1.5-5x magnification range is ideal for shooting at a variety of distances. And at only 9.3 ounces, it's built for long days in the wild.
- Side Focus
$399.99
The VX®-3i 1.5-5x20mm is one of the most popular dangerous game/safari scopes in the world. From tight brush to open savannahs, the 1.5-5x magnification range is ideal for shooting at a variety of distances. And at only 9.3 ounces, it's built for long days in the wild.
What do hunters want most in a scope? Outstanding performance in low-light conditions and an incredibly tough, lightweight design. The VX-3i delivers this and more. Built around Leupold’s Elite Optical System, it offers the light transmission, glare reduction, and resolution that diehard hunters and shooters demand for all-day performance.
Everything we put into the VX-3i is there to help you tag out. It's 100% waterproof and fogproof, and like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
Features
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
| BDC Dial Included | No |
|---|---|
| Custom Dial Compatible | No |
| Daylight Bright Illumination | No |
| Custom Dial System (CDS) | No |
| Elevation Adjustment Type | Finger Click |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Illuminated | No |
| Locking Dial | No |
| Motion Sensor Technology (MST) | No |
| Nightvision Compatible Illumination | No |
| Revolution Indicator | No |
| Reticle | Duplex |
| Rezero Type | Resettable Index Ring |
| Adjustable Objective | No |
| Side Focus | No |
| Windage Adjustment Type | Finger Click |
| Weight (oz) | 9.3 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 110 |
| Elevation Adjustment Range (MIL) | 32 |
| Elevation Adjustment Range (cm @ 100m) | 320 |
| Elevation Adjustment Per Revolution | 15 MOA |
| Elevation Dial Travel Limit | Total Scope Travel |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 110 |
| Windage Adjustment Range (MIL) | 32 |
| Windage Adjustment Range (cm @ 100m) | 320 |
| Windage Adjustment Per Revolution | 15 MOA |
| Magnification Max | 5 |
| Magnification Min | 1.5 |
| Objective Lens Diameter (mm) | 20 |
| Linear FOV Low Mag (ft@100yds) | 67.6 |
| Linear FOV High Mag (ft@100yds) | 24.1 |
| Angular FOV Low Mag (Degrees) | 12.9 |
| Angular FOV High Mag (Degrees) | 4.6 |
| Eye Relief Low Mag (in) | 4.4 |
| Eye Relief High Mag (in) | 3.6 |
| Fixed Parallax-Free Distance (yd) | 150 |
| Objective Length (in) | 0 |
Dimensions
| A Total Length (in) - A | 9.7 |
|---|---|
| B Total Mounting Space (in) - B | 6 |
| C Front Mounting Space (in) - C | 2.3 |
| D Rear Mounting Space (in) - D | 2.5 |
| E Eyepiece Length (in) - E | 3.1 |
| G Objective Diameter (in) - G | 1 |
| H Eyepiece Diameter (in) - H | 1.6 |
| K Maintube Diameter (mm/in) - K | 1 Inch |
Detailed reticle info
Duplex®
Download PDF- Invented in 1962 by Leupold®
- Defined by heavy posts
- Stands out against cover in low light
- Quick target acquisition with thin lines at the center
- Most popular reticle in the world
- Rear (second) focal plane
