VX-3HD

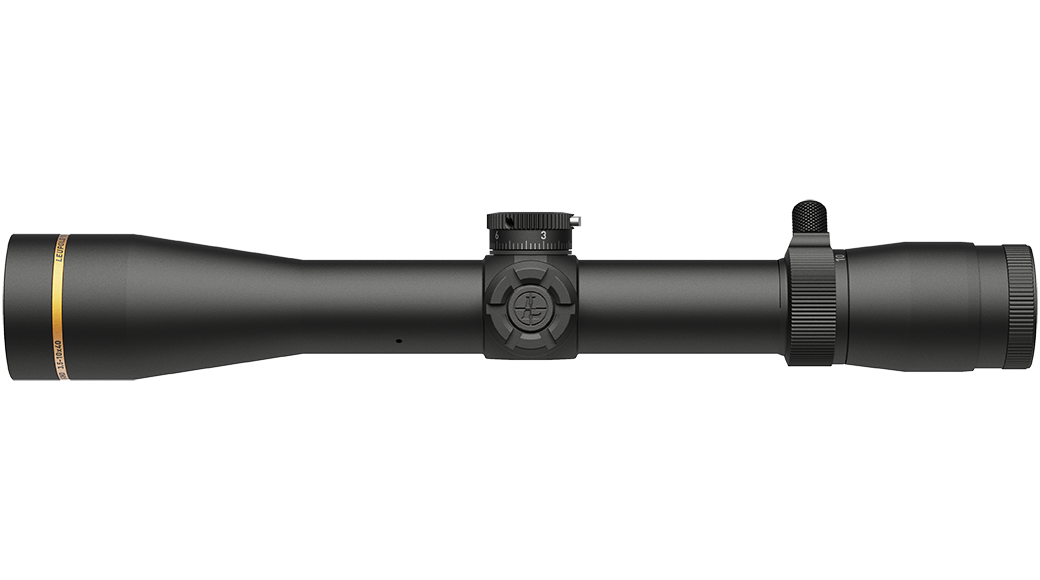

VX-3HD 3.5-10x40 CDS-ZL Illum. FireDot Twilight Hunter

Part #
180627

The VX®-3HD 3.5-10x40mm delivers legendary performance and extreme clarity in an incredibly tough, lightweight package. Its versatile magnification can get the job done in almost any scenario.

FireDot® Twilight Hunter Illum. Reticle info
$699.99
Find it locally

The VX®-3HD 3.5-10x40mm delivers legendary performance and extreme clarity in an incredibly tough, lightweight package. Its versatile magnification can get the job done in almost any scenario.

The VX-3HD delivers outstanding performance in low light. With Leupold’s Elite Optical System, it has excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand. The illuminated FireDot® reticle with seven brightness settings and easy-to-use illumination dial will get you on target fast, even in harsh daylight. We also gave it match-grade repeatability and ergonomic controls that are easy to read and use, even with gloves. The VX-3HD is the best lightweight, low-light hunting scope in its class. And with its low-profile, one-revolution CDS® ZeroLock® dial, you can be confident your dial will only move when you want it to. Push the button to unlock it, dial, and then rotate it back to zero to lock it in place. It’s that simple.

Everything we put into your VX-3HD is there to help you tag out. Like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
This scope comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MSTâ„¢) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
The removable, low-profile throw lever makes changing magnifications quick and easy. It includes a thread protector plug to use when the lever is removed.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
This scope comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MSTâ„¢) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
The removable, low-profile throw lever makes changing magnifications quick and easy. It includes a thread protector plug to use when the lever is removed.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Battery Type CR2032
BDC Dial Included No
Custom BDC Dial Compatible Yes
Daylight Bright Illumination Yes
Custom Dial System (CDS) Yes
Elevation Adjustment Type CDS-ZL
Electronic Reticle Level No
Guard-ion Lens Coating No
Locking Dial Yes
Magnification Type Variable
Nightvision Compatible Illumination No
Reticle Focal Plane Second Focal Plane
Revolution Indicator No
Reticle Illum. FireDot Twilight Hunter
Rezero Type Set Screw
Reticle Type Illuminated
Adjustable Objective No
Side Focus No
Switch Type Push Button
Windage Adjustment Type Finger Click
Weight (oz) 15.8
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 75
Elevation Adjustment Range (MIL) 21.8
Elevation Adjustment Range (cm @ 100m) 218.2
Elevation Adjustment Per Revolution 15 MOA
Elevation Dial Travel Limit 14.5MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 60
Windage Adjustment Range (MIL) 17.5
Windage Adjustment Range (cm @ 100m) 174.5
Windage Adjustment Per Revolution 15 MOA
Magnification Max 10
Magnification Min 3.5
Objective Lens Diameter (mm) 40
Linear FOV Low Mag (ft@100yds) 29
Linear FOV High Mag (ft@100yds) 11
Angular FOV Low Mag (Degrees) 5.5
Angular FOV High Mag (Degrees) 2.1
Eye Relief Low Mag (in) 4.4
Eye Relief High Mag (in) 3.6
Fixed Parallax-Free Distance (yd) 150
Battery Life (hr), Low Intensity 1600
Battery Life (hr), Medium Intensity 1000
Battery Life (hr), High Intensity 300
Number of Illum Settings 8
Dimensions
A Total Length (in) - A 12.7
B Total Mounting Space (in) - B 5.93
C Front Mounting Space (in) - C 2.23
D Rear Mounting Space (in) - D 2.47
E Eyepiece Length (in) - E 3.12
F Objective Length (in) - F 3.65
G Objective Diameter (in) - G 1.83
H Eyepiece Diameter (in) - H 1.63
K Maintube Diameter (mm/in) - K 30 mm

Detailed reticle info

FireDot® Twilight Hunter Illum.

Download PDF
  • Designed specifically for low-light situations
  • Provides a simple aiming point with no distractions
  • Thin lines obscure less of the target and image
  • FireDot® technology brings your eye to the center of the reticle for quick target acquisition
  • Features Motion Sensor Technology
  • Second (rear) focal plane
