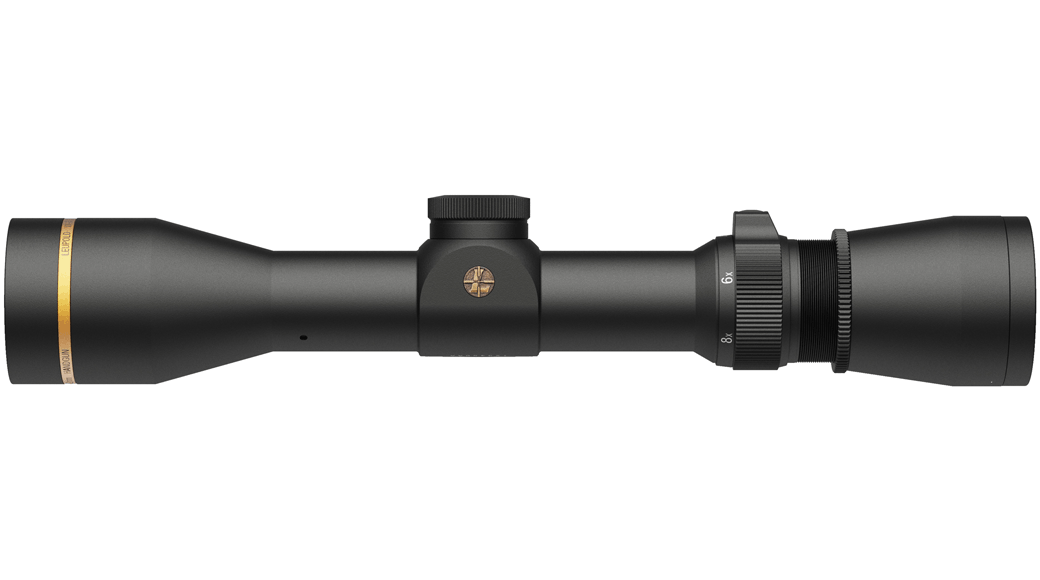

VX-3 Handgun 2.5-8x32 Duplex
The VX®-3 Handgun 2.5-8x32mm scope not only eliminates the need to focus on the front sight, but eliminates the inaccuracy of a handgun's short sight radius. They're tested to the same harsh standards as all other Leupold® scopes and are guaranteed for life.
With Leupold® Handgun scopes, you not only eliminate the need to focus on the front sight, you eliminate the inaccuracy of a handgun's short sight radius. All that's left is you, the crosshairs, and the game.
The VX®-3 Handgun 2.5-8x32mm scope is built around Leupold's Advanced Optical System, which delivers the light transmission, glare reduction, and resolution all recreational sportsmen and sportswomen demand. It can take a beating, too. The 2.5-8 is tested to the same harsh standards as all other Leupold scopes. And like all Leupold riflescopes, it’s designed, machined, and assembled in the USA and guaranteed for life.
Features
Specifications
BDC Dial Included | No |
---|---|
Custom BDC Dial Compatible | No |
Daylight Bright Illumination | No |
Custom Dial System (CDS) | No |
Elevation Adjustment Type | Finger Click |
Electronic Reticle Level | No |
Guard-ion Lens Coating | No |
Illuminated | No |
Locking Dial | No |
Magnification Type | Variable |
Motion Sensor Technology (MST) | No |
Nightvision Compatible Illumination | No |
Revolution Indicator | No |
Reticle | Duplex |
Rezero Type | Resettable Index Ring |
Reticle Type | Second Focal Plane |
Adjustable Objective | No |
Side Focus | No |
Windage Adjustment Type | Finger Click |
Weight (oz) | 10.9 |
Elevation Adjustment Value per Click | 1/4MOA |
Elevation Adjustment Range (MOA) | 100 |
Elevation Adjustment Range (MIL) | 29 |
Elevation Adjustment Range (cm @ 100m) | 291 |
Elevation Adjustment Per Revolution | 15 MOA |
Elevation Dial Travel Limit | Total Scope Travel |
Windage Adjustment Value per Click | 1/4MOA |
Windage Adjustment Range (MOA) | 100 |
Windage Adjustment Range (MIL) | 29 |
Windage Adjustment Range (cm @ 100m) | 291 |
Windage Adjustment Per Revolution | 15 MOA |
Magnification Max | 8 |
Magnification Min | 2.5 |
Objective Lens Diameter (mm) | 32 |
Linear FOV Low Mag (ft@100yds) | 12.9 |
Linear FOV High Mag (ft@100yds) | 4.8 |
Angular FOV Low Mag (Degrees) | 2.5 |
Angular FOV High Mag (Degrees) | .9 |
Eye Relief Low Mag (in) | 15 |
Eye Relief High Mag (in) | 15 |
Fixed Parallax-Free Distance (yd) | 125 |
Dimensions
A Total Length (in) - A | 11.4 |
---|---|
B Total Mounting Space (in) - B | 4.1 |
C Front Mounting Space (in) - C | 1.4 |
D Rear Mounting Space (in) - D | 1.5 |
E Eyepiece Length (in) - E | 3 |
F Objective Length (in) - F | 2.5 |
G Objective Diameter (in) - G | 1.7 |
H Eyepiece Diameter (in) - H | 1.7 |
K Maintube Diameter (mm/in) - K | 1 Inch |
Detailed reticle info
Duplex®
Download PDF- Invented in 1962 by Leupold®
- Defined by heavy posts
- Stands out against cover in low light
- Quick target acquisition with thin lines at the center
- Most popular reticle in the world
- Rear (second) focal plane
-
