Mark 3HD

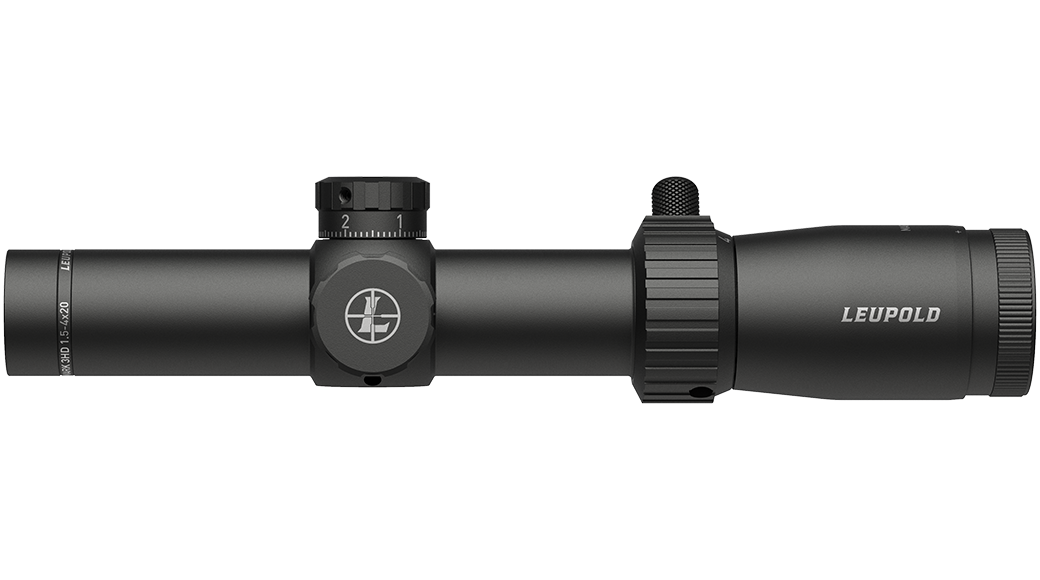

Mark 3HD 1.5-4x20 P5 Illum. FireDot TMR

Part #
180664

The Mark 3HDâ„¢ was built for any shooter who needs a rugged, precise, and repeatable MIL-based scope for their tactical rifle. The 1.5-4x20mm model provides a wide field of view, while also allowing for precise, close to mid-range shots.

FireDot® TMR Illum. Reticle info
$699.99
Find it locally

We have a long history of manufacturing rugged and reliable riflescopes that outperform and outlast everything else on the battlefield and in competition. We used that heritage to create an extremely versatile line of tactical scopes for the shooter looking to upgrade every long gun in their safe. The Mark 3HD™ 1.5-4x20mm provides a wide field of view, while also allowing for precise, close to mid-range shots.

Complete with MIL-based adjustments and reticles, HD performance, an exposed elevation adjustment dial, and a low-profile power selector with integrated throw lever, the Mark 3HD series is perfect for anyone who needs a rugged, precise, and repeatable scope. Built around Leupold’s Elite Optical System, it offers the light transmission, glare reduction, and resolution that diehard hunters and shooters demand for all-day performance. The illuminated FireDot® reticle with seven brightness settings and easy-to-use illumination dial will get you on target fast, even in harsh daylight.

And like every Leupold® riflescope, the Mark 3HD was designed, machined, and assembled in our Oregon factory. We test it to ensure it's absolutely rugged, 100% waterproof and fogproof, and then we guarantee it for a lifetime of performance.

Features
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MSTâ„¢) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
The removable, low-profile throw lever makes changing magnifications quick and easy. It includes a thread protector plug to use when the lever is removed.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MSTâ„¢) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
The removable, low-profile throw lever makes changing magnifications quick and easy. It includes a thread protector plug to use when the lever is removed.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Battery Type CR2032
BDC Dial Included No
Daylight Bright Illumination Yes
Custom Dial System (CDS) No
Elevation Adjustment Type P5
Electronic Reticle Level No
Guard-ion Lens Coating No
Light Management System Elite Optical System
Locking Dial No
Magnification Type Variable
Nightvision Compatible Illumination No
Reticle Focal Plane Second Focal Plane
Revolution Indicator No
Reticle Illum. FireDot TMR
Rezero Type Set Screw
Reticle Type Illuminated
Adjustable Objective No
Side Focus No
Switch Type Dial
Windage Adjustment Type Capped
Weight (oz) 13.1
Elevation Adjustment Value per Click 0.1Mil
Elevation Adjustment Range (MOA) 115
Elevation Adjustment Range (MIL) 33.5
Elevation Adjustment Range (cm @ 100m) 334.5
Elevation Adjustment Per Revolution 6 MIL
Elevation Dial Travel Limit 5.6MIL
Windage Adjustment Value per Click 0.1Mil
Windage Adjustment Range (MOA) 115
Windage Adjustment Range (MIL) 33.5
Windage Adjustment Range (cm @ 100m) 334.5
Windage Adjustment Per Revolution 5 MIL
Magnification Max 4
Magnification Min 1.5
Objective Lens Diameter (mm) 20
Linear FOV Low Mag (ft@100yds) 74.2
Linear FOV High Mag (ft@100yds) 29.3
Angular FOV Low Mag (Degrees) 14.1
Angular FOV High Mag (Degrees) 5.6
Eye Relief Low Mag (in) 4.2
Eye Relief High Mag (in) 3.7
Fixed Parallax-Free Distance (yd) 150
Battery Life (hr), Low Intensity 1600
Battery Life (hr), Medium Intensity 1000
Battery Life (hr), High Intensity 300
Number of Illum Settings 8
Dimensions
A Total Length (in) - A 9.5
B Total Mounting Space (in) - B 5.2
C Front Mounting Space (in) - C 2.2
D Rear Mounting Space (in) - D 1.8
E Eyepiece Length (in) - E 3.7
F Objective Length (in) - F .6
G Objective Diameter (in) - G 1.2
H Eyepiece Diameter (in) - H 1.6
K Maintube Diameter (mm/in) - K 30 mm

Detailed reticle info

FireDot® TMR Illum.
