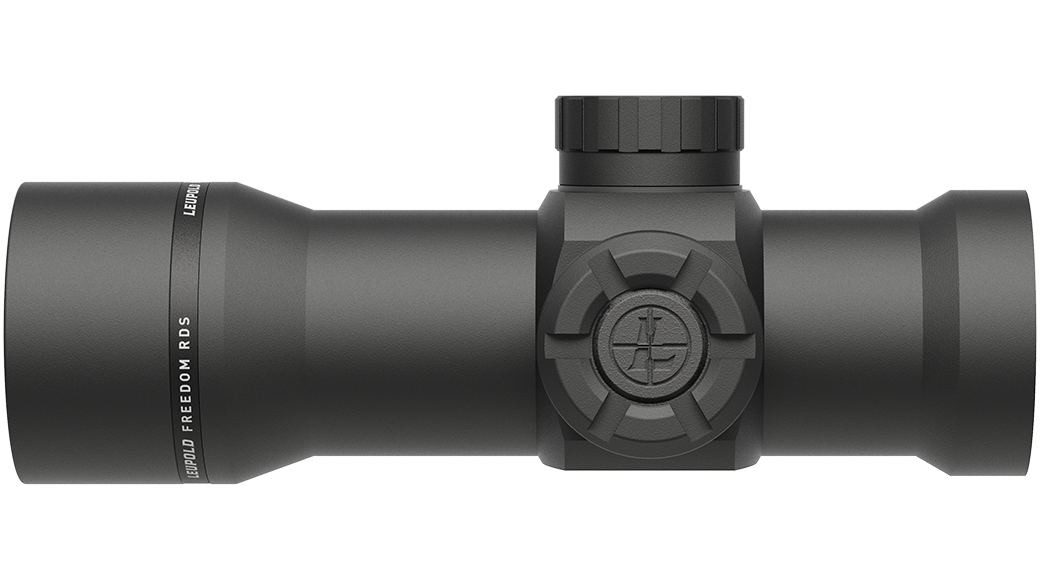

Freedom RDS
Part #
180091
All red dots are not created equal. The Freedom® RDS (red dot sight) changes the game when it comes to consistency and durability in a red dot sight. It's everything you need in a red dot and nothing you don't. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
$279.99
All red dots are not created equal. The Freedom® RDS® (red dot sight) changes the game when it comes to consistency and durability in a red dot sight. We took our 70+ years of optics knowledge and created a red dot that's built Leupold® tough, performs in extreme conditions, and won't break the bank.
This true 1x sight has everything you need in a red dot and nothing you don't. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.
Battery life at brightness 4 of 8: 1000 hours minimum
RDS - no mount with battery = 7.2 ounces
Features
Leupold’s Professional-Grade Red Dot Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
This scope comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Leupold’s Professional-Grade Red Dot Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
This scope comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
| Battery Type | CR2032 |
|---|---|
| BDC Dial Included | No |
| Custom BDC Dial Compatible | No |
| Daylight Bright Illumination | Yes |
| Custom Dial System (CDS) | No |
| Elevation Adjustment Type | Finger Click |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Locking Dial | No |
| Nightvision Compatible Illumination | No |
| Reticle Focal Plane | Second Focal Plane |
| Revolution Indicator | No |
| Reticle | 1 MOA Dot |
| Rezero Type | Resettable Index Ring |
| Reticle Type | Illuminated |
| Adjustable Objective | No |
| Side Focus | No |
| Switch Type | Push Button |
| Windage Adjustment Type | Finger Click |
| Weight (oz) | 6.9 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 80 |
| Elevation Adjustment Range (MIL) | 23 |
| Elevation Adjustment Range (cm @ 100m) | 233 |
| Elevation Adjustment Per Revolution | 15 MOA |
| Elevation Dial Travel Limit | Total Scope Travel |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 80 |
| Windage Adjustment Range (MIL) | 23 |
| Windage Adjustment Range (cm @ 100m) | 233 |
| Windage Adjustment Per Revolution | 15 MOA |
| Magnification Min | 1 |
| Objective Lens Diameter (mm) | 34 |
| Eye Relief Low Mag (in) | Unlimited |
| Battery Life (hr), Low Intensity | 1600 |
| Battery Life (hr), Medium Intensity | 1000 |
| Battery Life (hr), High Intensity | 300 |
| Number of Illum Settings | 8 |
Dimensions
| A Total Length (in) - A | 5.43 |
|---|---|
| B Total Mounting Space (in) - B | 3.27 |
| C Front Mounting Space (in) - C | 1.22 |
| D Rear Mounting Space (in) - D | .84 |
| E Eyepiece Length (in) - E | .59 |
| F Objective Length (in) - F | 1.58 |
| G Objective Diameter (in) - G | 1.64 |
| H Eyepiece Diameter (in) - H | 1.54 |
| K Maintube Diameter (mm/in) - K | 34 mm |
Detailed reticle info
MOA 1 Red Dot
- Dot provides definitive aiming point
- 1 MOA dot is ideal for precise shot placement
- Does not obscure target
- Provides wide field of view
- Rapid target engagement
- Red illumination
- 1 MOA is approximately 1 inch at 100 yards
- Rear (second) focal plane
Videos

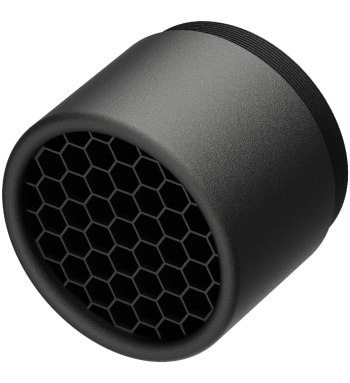

Compatible Accessories
-
