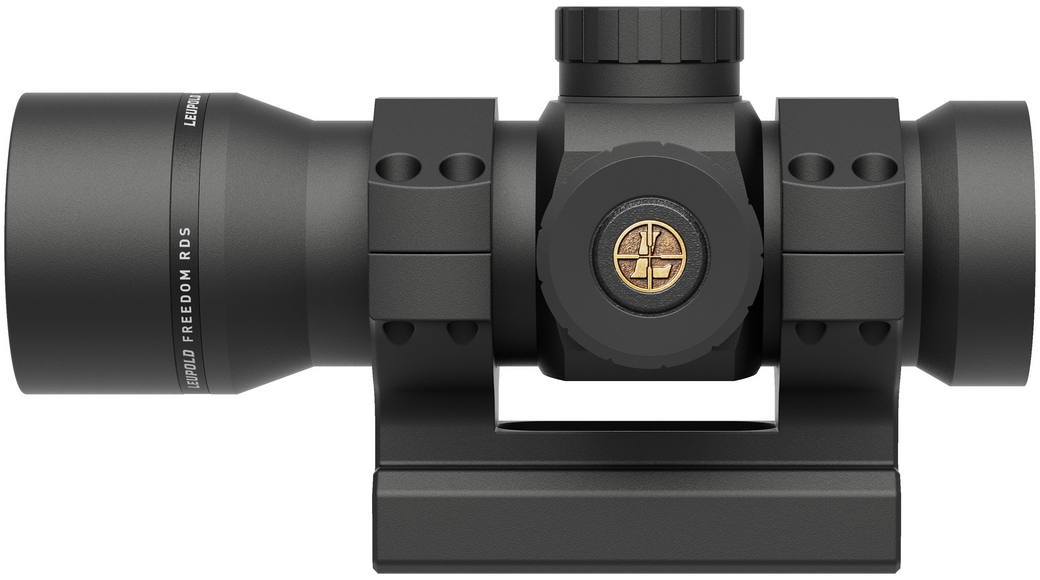

Freedom Red Dot Sight (RDS)

Freedom RDS Black 1x34 w/ Mount

Part #
180092

All red dots are not created equal. The Freedom® RDS® (red dot sight) changes the game when it comes to consistency and durability in a red dot sight. It's everything you need in a red dot and nothing you don't.

matte finish
1 MOA Red Dot Reticle info
$299.99

All red dots are not created equal. The Freedom® RDS® (red dot sight) changes the game when it comes to consistency and durability in a red dot sight. We took our 70+ years of optics knowledge and created a red dot that's built Leupold® tough, performs in extreme conditions, and won't break the bank.

This true 1x sight has everything you need in a red dot and nothing you don't. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.

Includes AR-specific mount
Battery life at brightness 4 of 8: 1000 hours minimum
RDS - no mount with battery = 7.2 ounces

Features
Leupold’s Professional-Grade Red Dot Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Leupold’s Professional-Grade Red Dot Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
UPC 00030317026745
Finish Matte
Adjustable Objective No
Side Focus No
Reticle Focal Plane Second Focal Plane
Elevation Adjustment Type Finger Click
Zero Stop No
Locking Dial No
Zero Lock Dial No
Revolution Indicator No
Rezero Type Resettable Index Ring
Windage Adjustment Type Finger Click
Custom Dial System (CDS) No
Custom Dial Compatible No
BDC Dial Included No
Reticle Type Illuminated
Reticle 1 MOA Dot
Battery Type CR2032
Switch Type Push Button
Nightvision Compatible Illumination No
Daylight Bright Illumination Yes
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 6.9
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 80
Elevation Adjustment Range (MIL) 23
Elevation Adjustment Range (cm @ 100m) 233
Elevation Adjustment Per Revolution 15 MOA
Elevation Dial Travel Limit Total Scope Travel
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 80
Windage Adjustment Range (MIL) 23
Windage Adjustment Range (cm @ 100m) 233
Windage Adjustment Per Revolution 15 MOA
Magnification Min 1
Objective Lens Diameter (mm) 34
Eye Relief Low Mag (in) Unlimited
Battery Life (hr), Low Intensity 1600
Battery Life (hr), Medium Intensity 1000
Battery Life (hr), High Intensity 300
Number of Illum Settings 8
Dimensions
A Total Length (in) - A 5.43
B Total Mounting Space (in) - B 3.27
C Front Mounting Space (in) - C 1.22
D Rear Mounting Space (in) - D .84
E Eyepiece Length (in) - E .59
F Objective Length (in) - F 1.58
G Objective Diameter (in) - G 1.64
H Eyepiece Diameter (in) - H 1.54
K Maintube Diameter (mm/in) - K 34 mm

Detailed reticle info

1 MOA Red Dot

  • Dot provides definitive aiming point
  • 1 MOA dot is ideal for precise shot placement
  • Does not obscure target
  • Provides wide field of view
  • Rapid target engagement
  • Red illumination
  • 1 MOA is approximately 1 inch at 100 yards
  • Rear (second) focal plane
