DeltaPoint Pro

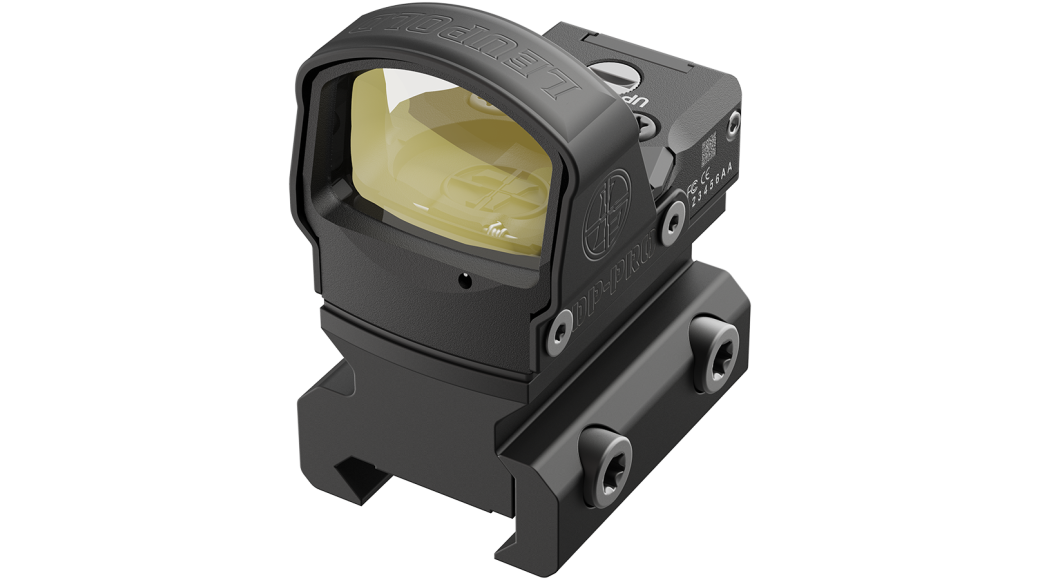

DeltaPoint Pro w/ AR Mount

Part #
177156
Most people think of the DeltaPoint® Pro as a pistol sight, but it's just as capable on an AR platform as it is on a handgun. The DP-Pro® AR Mount brings the red dot to just the right height without adding a ton of weight or bulk.
matte finish
2.5 MOA Dot Reticle info
$449.99

The DeltaPoint® Pro is proof that you don't have to compromise performance, even on a small sight. Its incredibly wide field of view and crystal-clear glass dominate the competition, while its rugged aluminum housing and steel sheath ensure it will perform in the harshest conditions. This extremely versatile sight has an easy-access battery compartment, so you don’t have to re-zero after a battery change. It also has click-adjustments for more precision. The DP-Pro® AR Mount brings the red dot to just the right height without adding a ton of weight or bulk. It's ideal for AR pistols or lightweight builds where every ounce matters. This mount puts the DP-Pro to the right height for ARs and fits any Picatinny rail. Like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
The Twilight Max® Light Management Systems offers a clearer, brighter image with three main benefits: Better Light Transmission - Maximizes more ambient light in low-light environments. Better Glare Management - Reduces more glare through additional lens coatings and minimizes image washout caused by stray light. Better Contrast & Resolution - Creates a clearer image using premium edge-to-edge lens prescriptions and HD coatings.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Micro-adjustable illumination brightness settings support modern night vision devices and can be fine-tuned to your equipment's sensitivity.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
The Twilight Max® Light Management Systems offers a clearer, brighter image with three main benefits: Better Light Transmission - Maximizes more ambient light in low-light environments. Better Glare Management - Reduces more glare through additional lens coatings and minimizes image washout caused by stray light. Better Contrast & Resolution - Creates a clearer image using premium edge-to-edge lens prescriptions and HD coatings.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Micro-adjustable illumination brightness settings support modern night vision devices and can be fine-tuned to your equipment's sensitivity.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
UPC 00030317022310
Finish Matte
Adjustable Objective No
Side Focus No
Reticle Focal Plane Second Focal Plane
Elevation Adjustment Type Coin Click
Zero Stop No
Locking Dial No
Zero Lock Dial No
Revolution Indicator No
Windage Adjustment Type Coin Click
Custom Dial System (CDS) No
Custom Dial Compatible No
BDC Dial Included No
Reticle Type Illuminated
Reticle 2.5 MOA Dot
Battery Type CR2032
Switch Type Push Button
Daylight Bright Illumination Yes
Electronic Reticle Level No
Display No
5:1 Zoom Ratio No
Guard-ion Lens Coating No
Lightweight Aluminum Housing No
Weight (oz) 2
Elevation Adjustment Value per Click 1MOA
Elevation Adjustment Range (MOA) 60
Elevation Adjustment Range (MIL) 17
Elevation Adjustment Range (cm @ 100m) 175
Elevation Adjustment Per Revolution 40 MOA
Elevation Dial Travel Limit Total Scope Travel
Windage Adjustment Value per Click 1MOA
Windage Adjustment Range (MOA) 60
Windage Adjustment Range (MIL) 17
Windage Adjustment Range (cm @ 100m) 175
Windage Adjustment Per Revolution 15 MOA
Magnification Min 1
Eye Relief Low Mag (in) Unlimited
Battery Life (hr), Low Intensity 1600
Battery Life (hr), Medium Intensity 1000
Battery Life (hr), High Intensity 300
Number of Illum Settings 8
Total Mounting Space (in) 0
Front Mounting Space (in) 0
Rear Mounting Space (in) 0
Eyepiece Length (in) 0
Objective Length (in) 0
Objective Diameter (in) 0
Eyepiece Diameter (in) 0
Dimensions
A Total Length (in) - A 1.8
Documents

Downloadable PDFs

Detailed reticle info

2.5 MOA Dot

  • Dot provides definitive aiming point
  • 2.5 MOA (minute of angle) dot is ideal for precise shot placement
  • Does not obscure target
  • Measures approximately 2.5 inches at 100 yards
  • Provides wide field of view
  • Rapid target engagement
  • Red illumination for contrast in low-light situations
  • Rear (second) focal plane
